GD-H1612
GOLD
GD-H1612

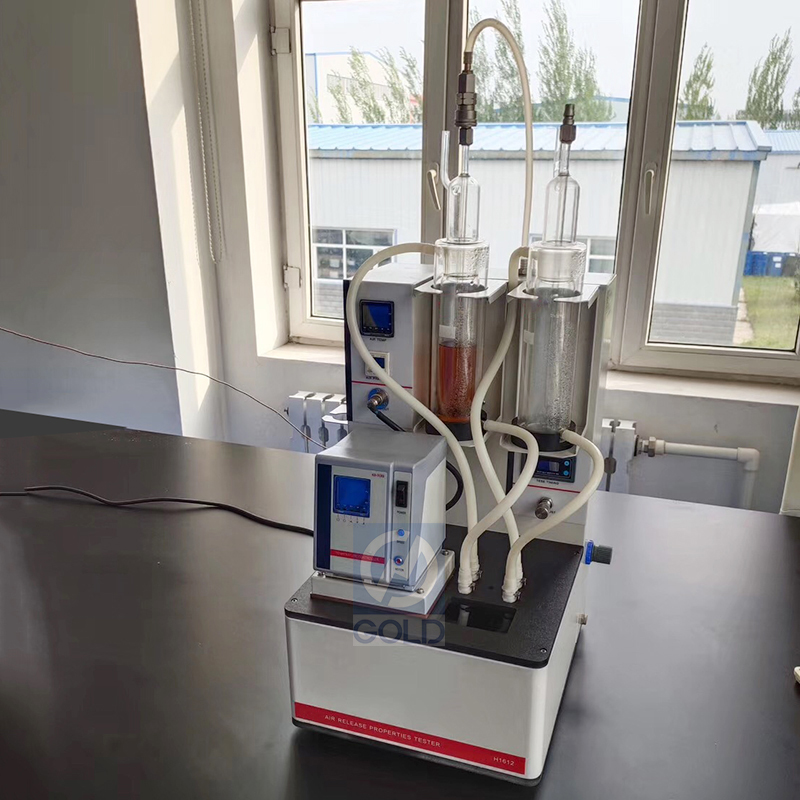

Automated Air Release Value Analyzer
Introdução:
The Air Release Value Analyzer is suitable for testing the ability of lubricating oil to separate mist air, such as gas turbine oil, hydraulic oil and other petroleum products. When using the instrument, the sample is heated to a certain temperature, and the sample is vigorously stirred by blowing excess compressed air into the sample, and the air forms small bubbles in the sample, that is, mist air. Record the time when the volume of mist air in the sample decreases to 0.2% after the gas is stopped.
Recursos:
The Air Release Value Analyzer adopts the high-quality Omron PID thermostat, digital display temperature, accuracy 0.1ºC.
Digital display air pressure, with needle valve adjustment.
Automatically control the blowing time, and automatically record the defoaming time after blowing, with an accuracy of 0.01s.
The press-type liquid circulation joint can quickly and conveniently disassemble the test tube.
Safety protection device to prevent the liquid level from being too low.
Two sets of constant temperature tests can be carried out at the same time.
The sputtering multi-channel liquid circulator can well ensure the temperature uniformity of each point.
Parâmetros:
Modelo de modelo | GD-H1612 Automated Air Release Value Analyzer |
Padrões aplicáveis | SH/T0308, ASTM D3427 |
Heating method | Electric rod heating |
Temperature control method | PID temperature controller |
Temperature control range | Normal temperature ~ 80±1℃ |
Pressão no trabalho | 19.6Kpa |
Controle de pressão | Precision pressure regulator adjustment |
Timing method | Digital display timer |
Pressure display | Digital meter display |
Poder total | 1500W |
Dimensions | 340mm*400mm*560mm |
Peso líquido | 25KG |
Fonte de energia | AC220±10%, 50Hz±5% |
ASTM D3427 Lubricant Air Release Value Tester:
